SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: None

Material: Plastic

Origin: Mainland China

Type: Other

is_customized: No

Features:

1. Multi-power output: Supports 5W, 10W, and 15W wireless charging to accommodate diverse device requirements

2. Efficient wireless transmission: Wireless charging conversion efficiency ≥75% ensures fast and stable charging performance

3. Smart Protection: Features overcurrent, undervoltage, and foreign object protection for safe and reliable operation

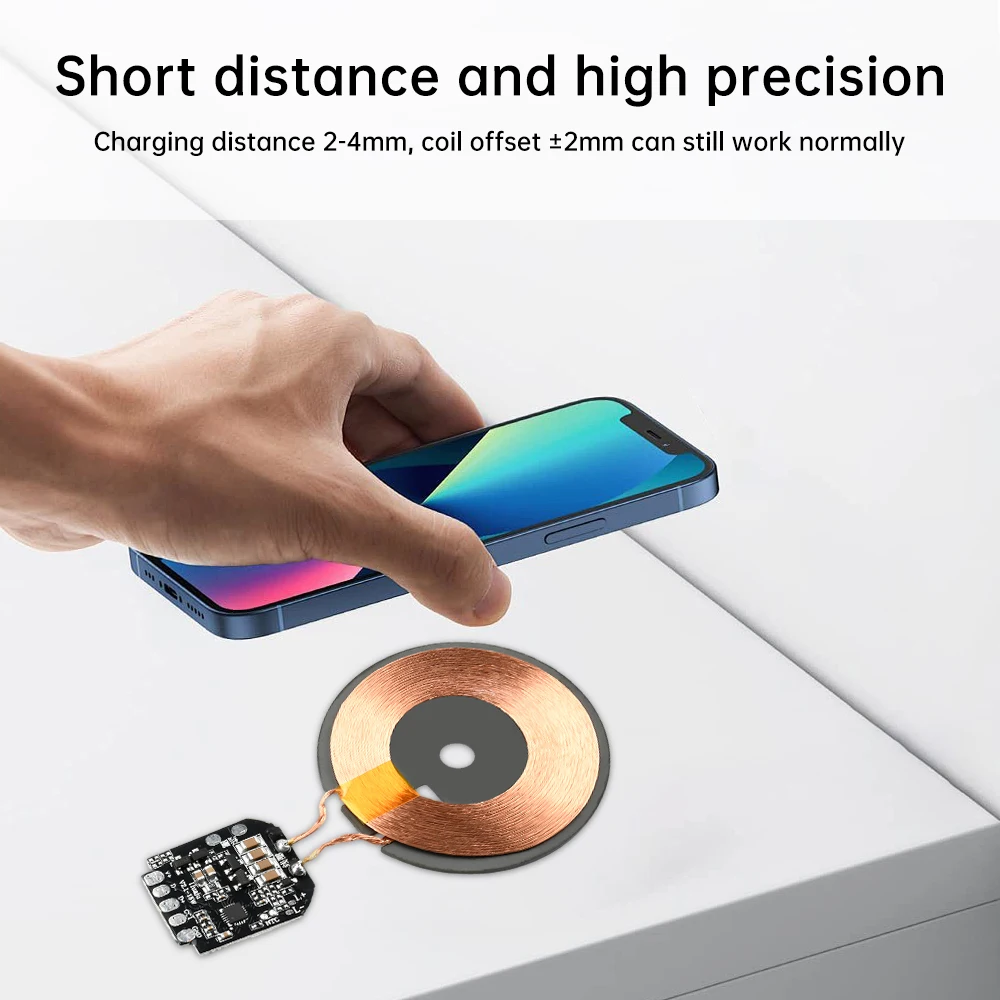

4. Short-Range Precision: Charges within 2-4mm distance; maintains functionality with coil misalignment up to ±2mm

5. Wide Temperature Range: Supports -30°C to 80°C ambient temperatures for diverse usage scenarios

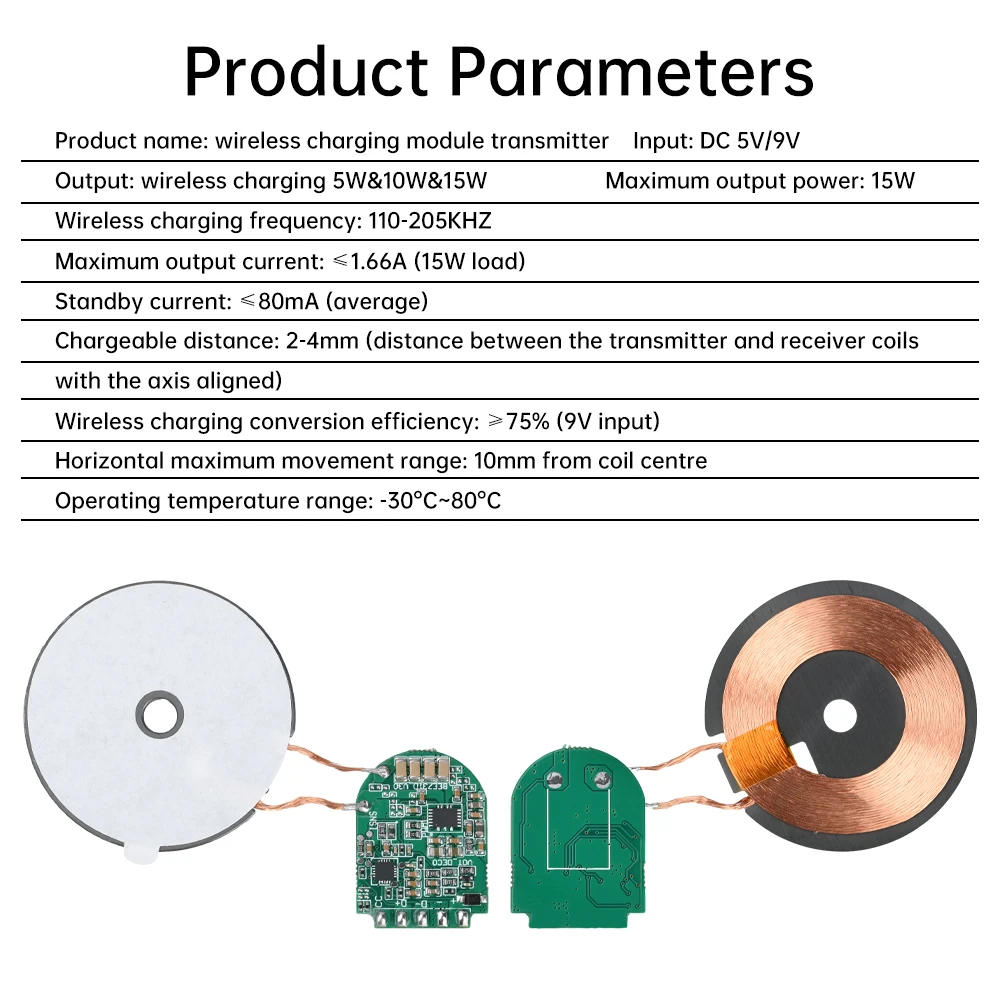

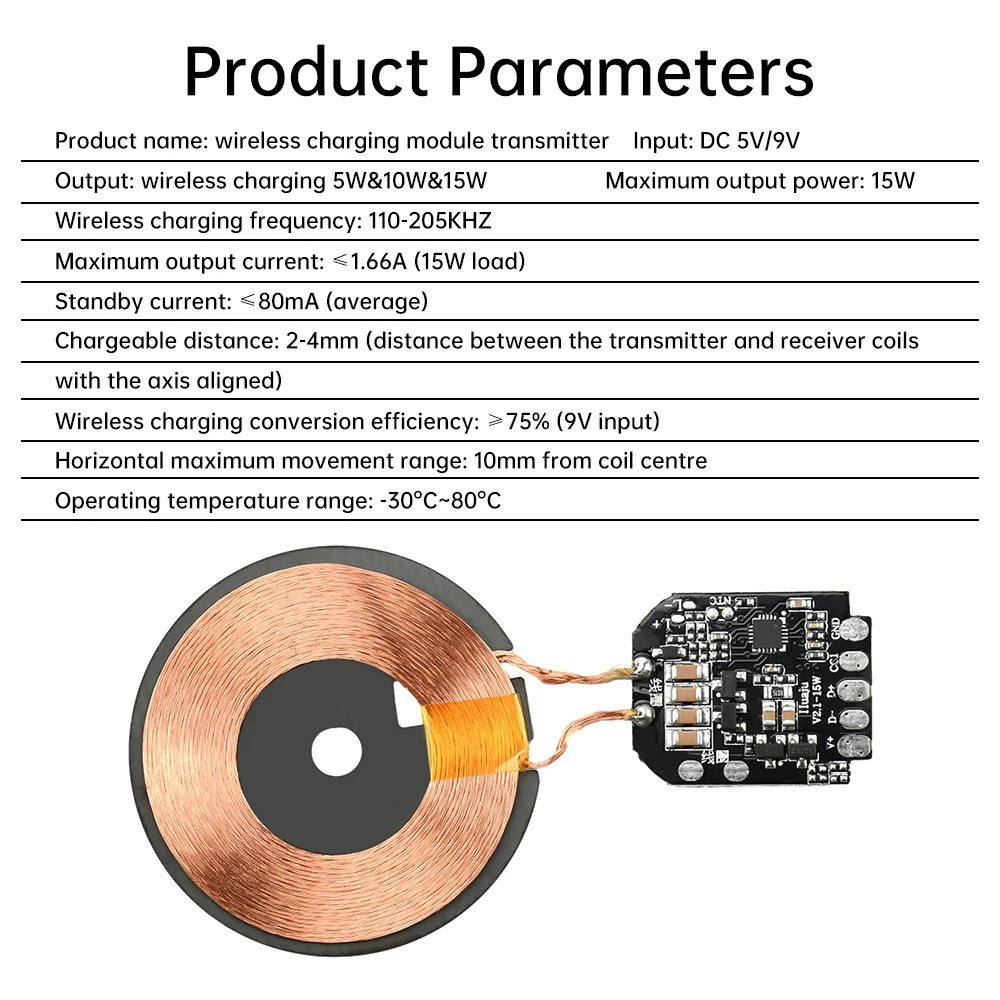

Product Specifications:

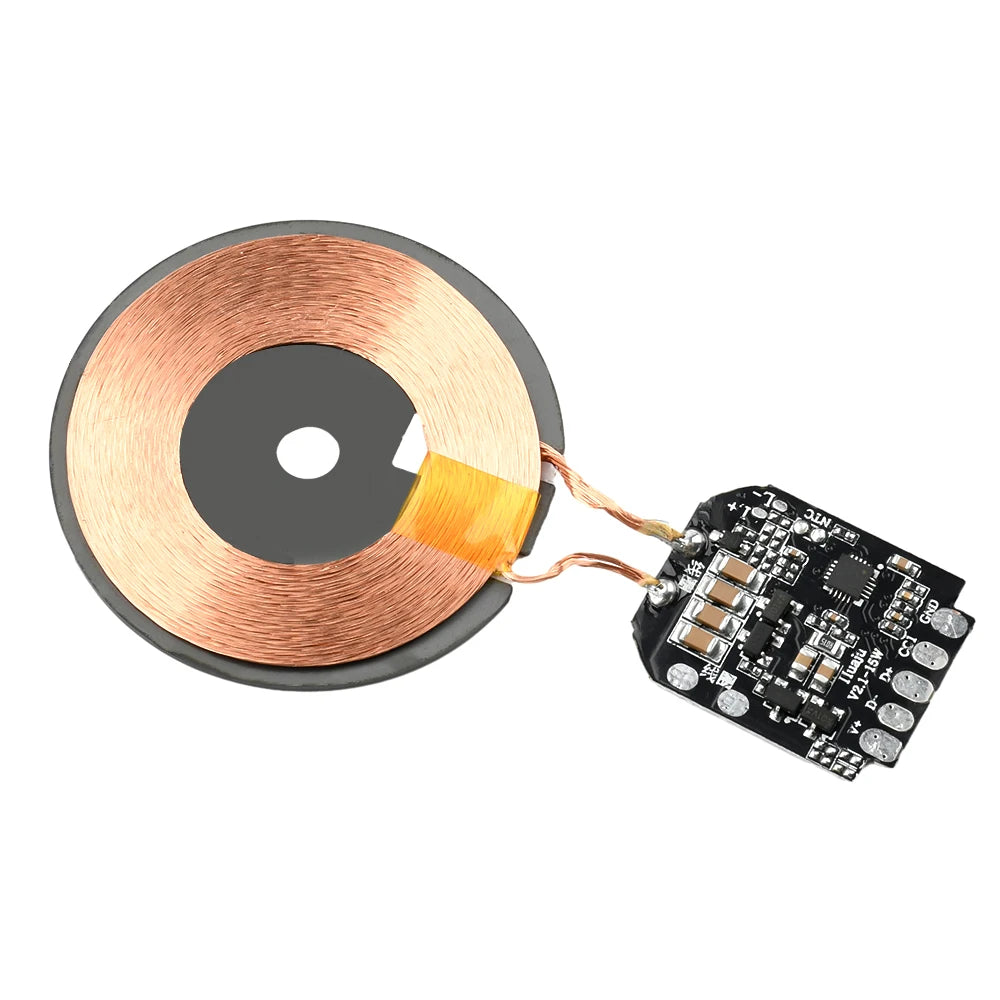

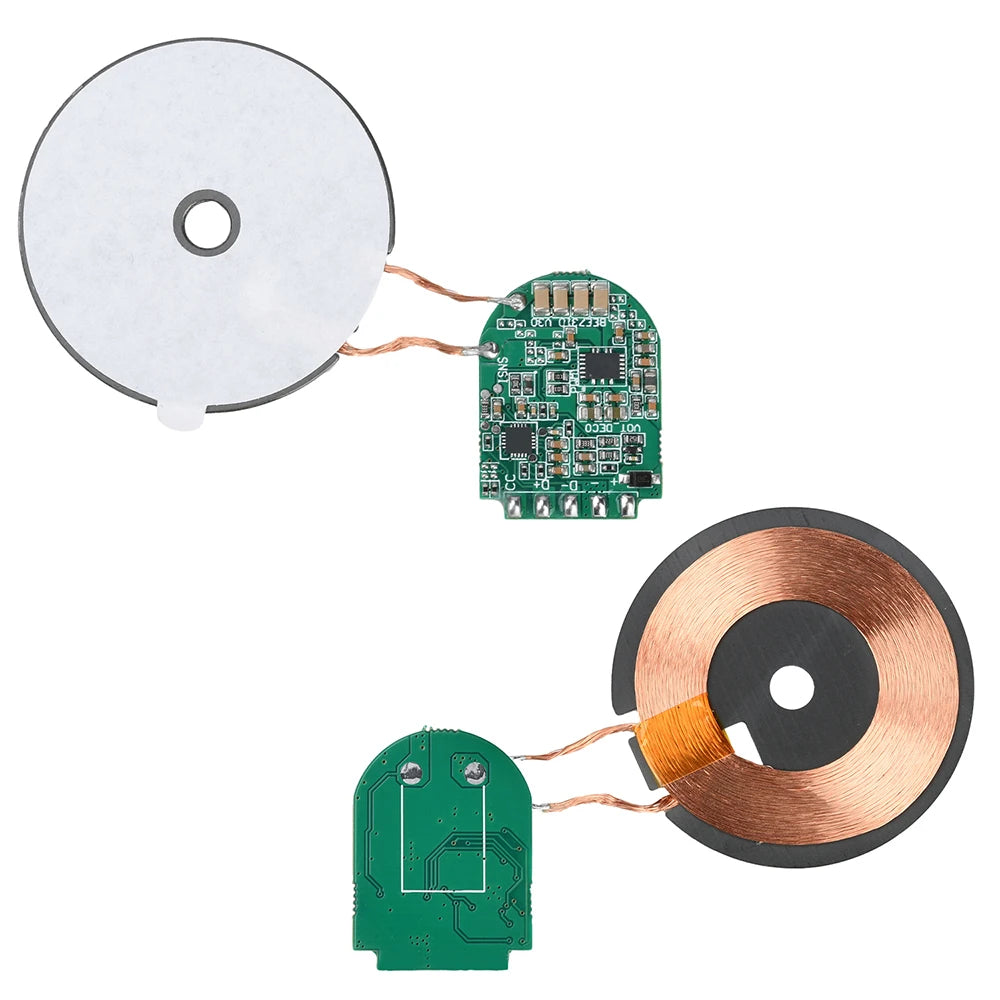

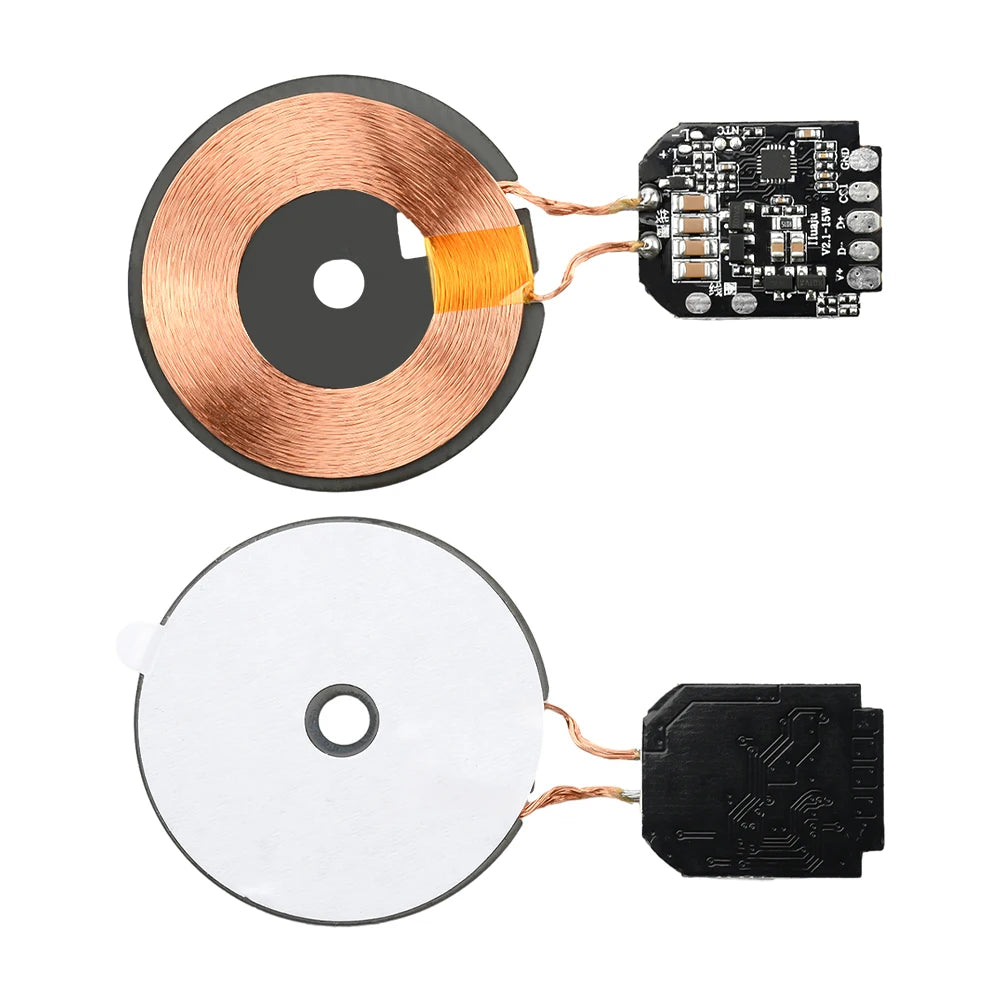

Product Name: Wireless Charging Module Transmitter

Input: DC 5V/9V

Output: Wireless Charging 5W & 10W & 15W

Maximum Output Power: 15W

Wireless Charging Frequency: 110-205kHz

Maximum Output Current: ≤1.66A (15W load)

Standby Current: ≤80mA (average)

Charging Distance: 2-4mm (distance between aligned transmitter and receiver coils)

Wireless Charging Conversion Efficiency: ≥75% (9V input)

Maximum Horizontal Movement Range: 10mm from coil center

Operating Temperature Range: -30°C to 80°C

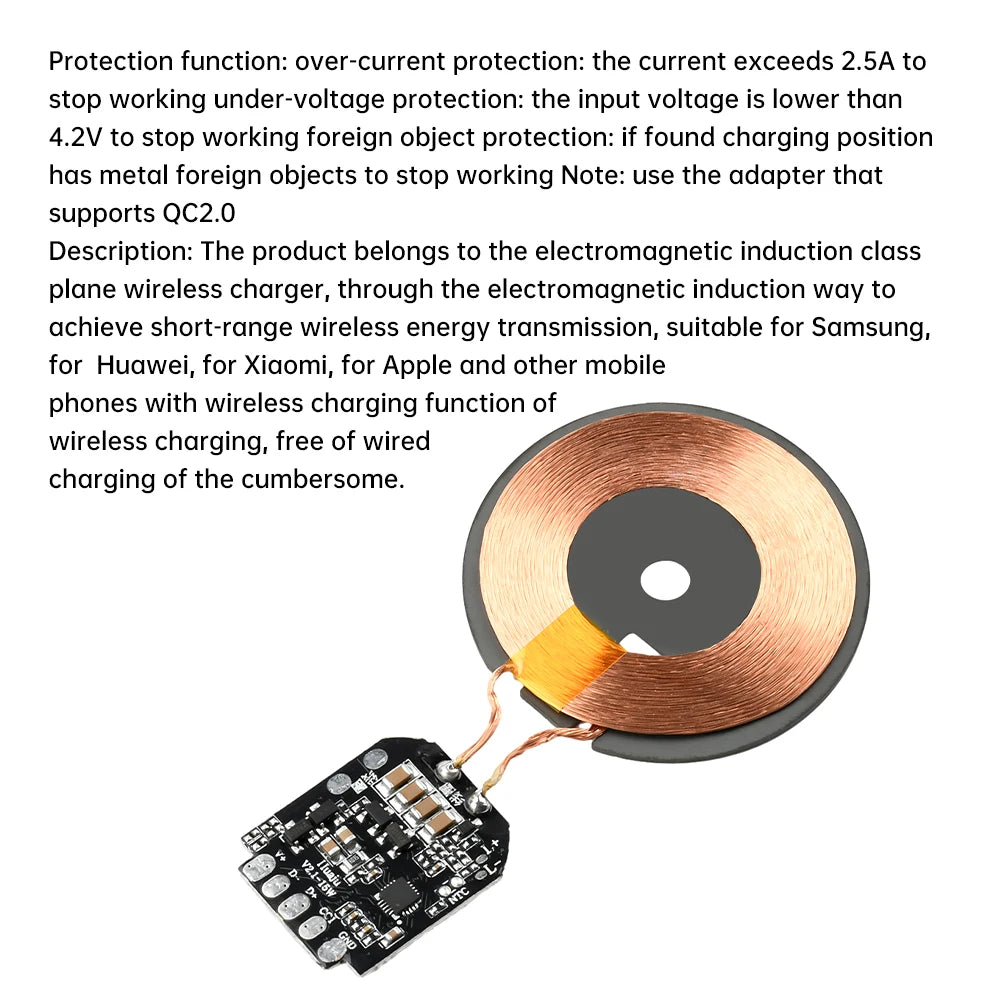

Protection Features:

Overcurrent Protection: Shuts down when current exceeds 2.5A

Undervoltage Protection: Shuts down when input voltage drops below 4.2V

Foreign Object Protection: Shuts down if metal objects detected at charging position

Note: Use an adapter supporting QC 2.0

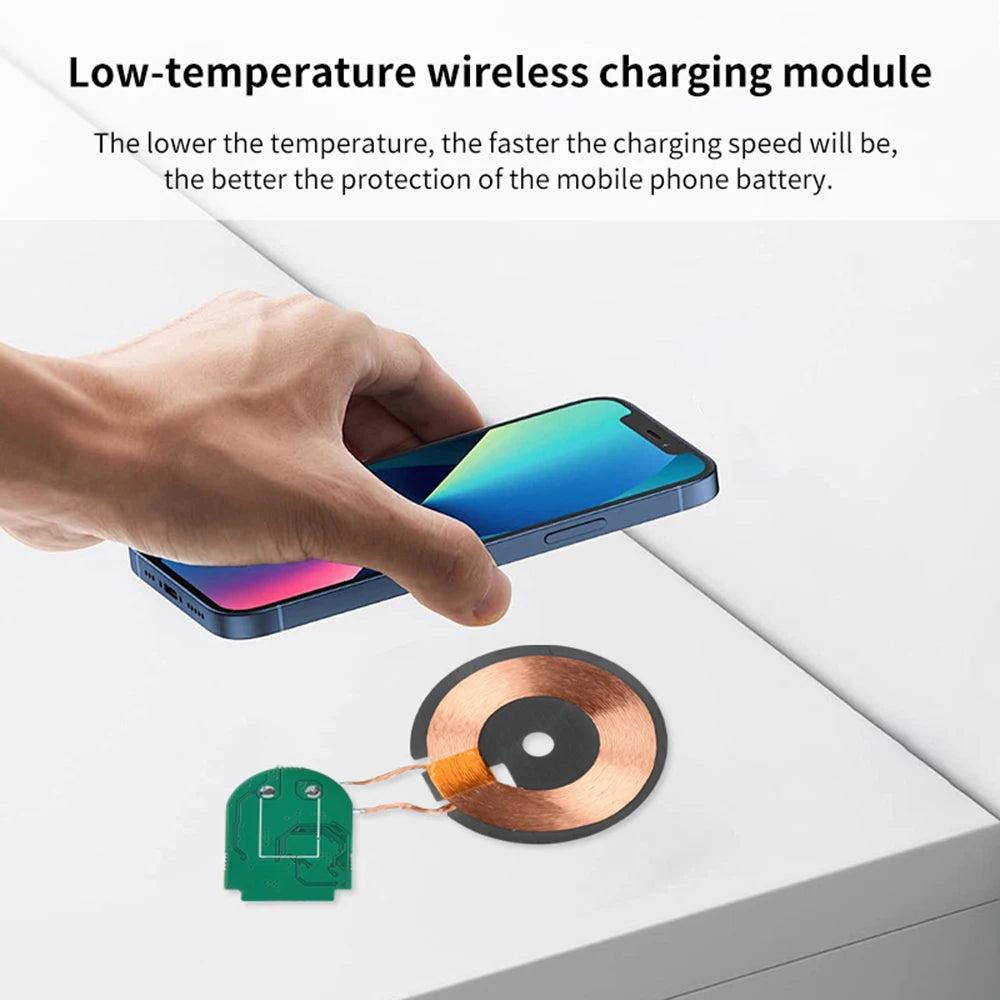

Low-Temperature Wireless Charging Module: Lower temperatures enable faster charging speeds and better protection for phone batteries

Description: This electromagnetic induction-based flat wireless charger enables short-range wireless power transfer. It supports wireless charging for Samsung, Huawei, Xiaomi, iPhone, and other compatible devices, eliminating the hassle of wired charging.

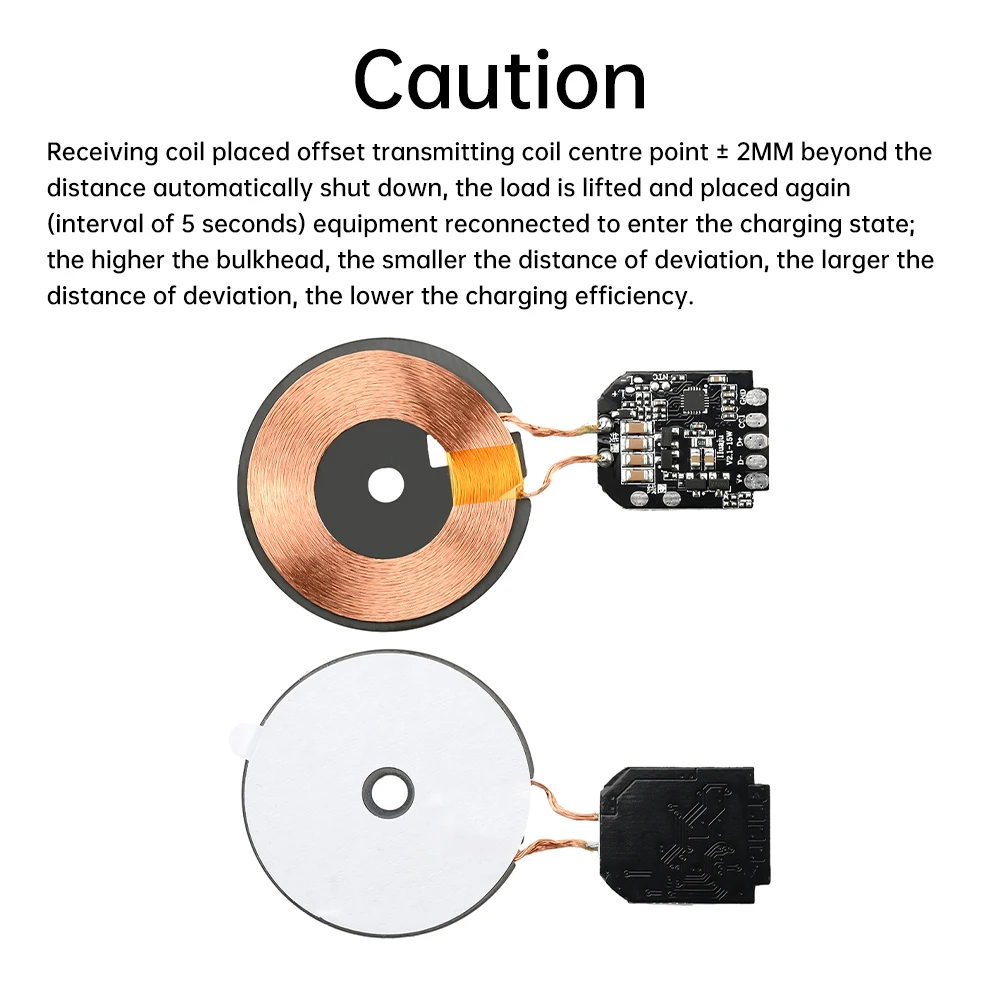

Note: If the receiving coil is offset from the center point of the transmitting coil by more than ±2mm, the device will automatically shut down. Lift the load and reposition it (wait 5 seconds) for the device to reconnect and resume charging. Higher separation plates allow for smaller offset distances; larger offsets reduce charging efficiency.

Shipping List:

Module x1
